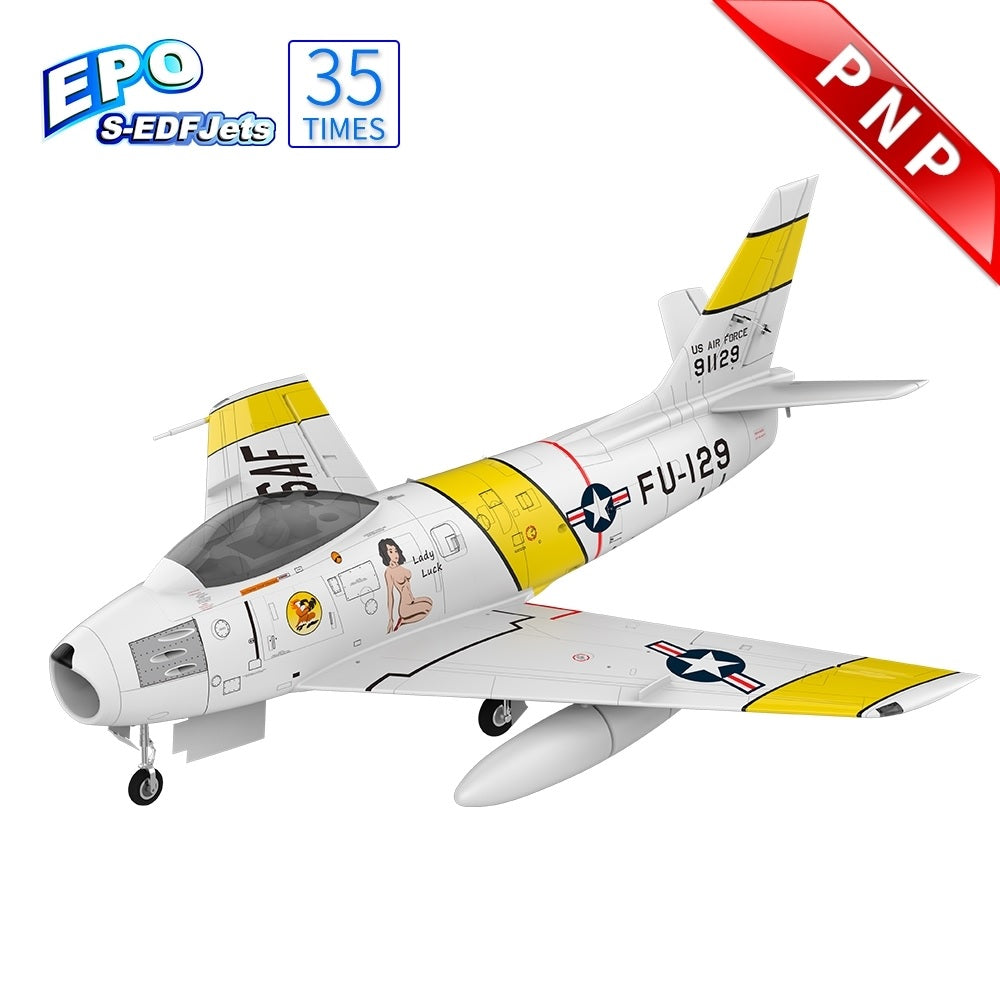

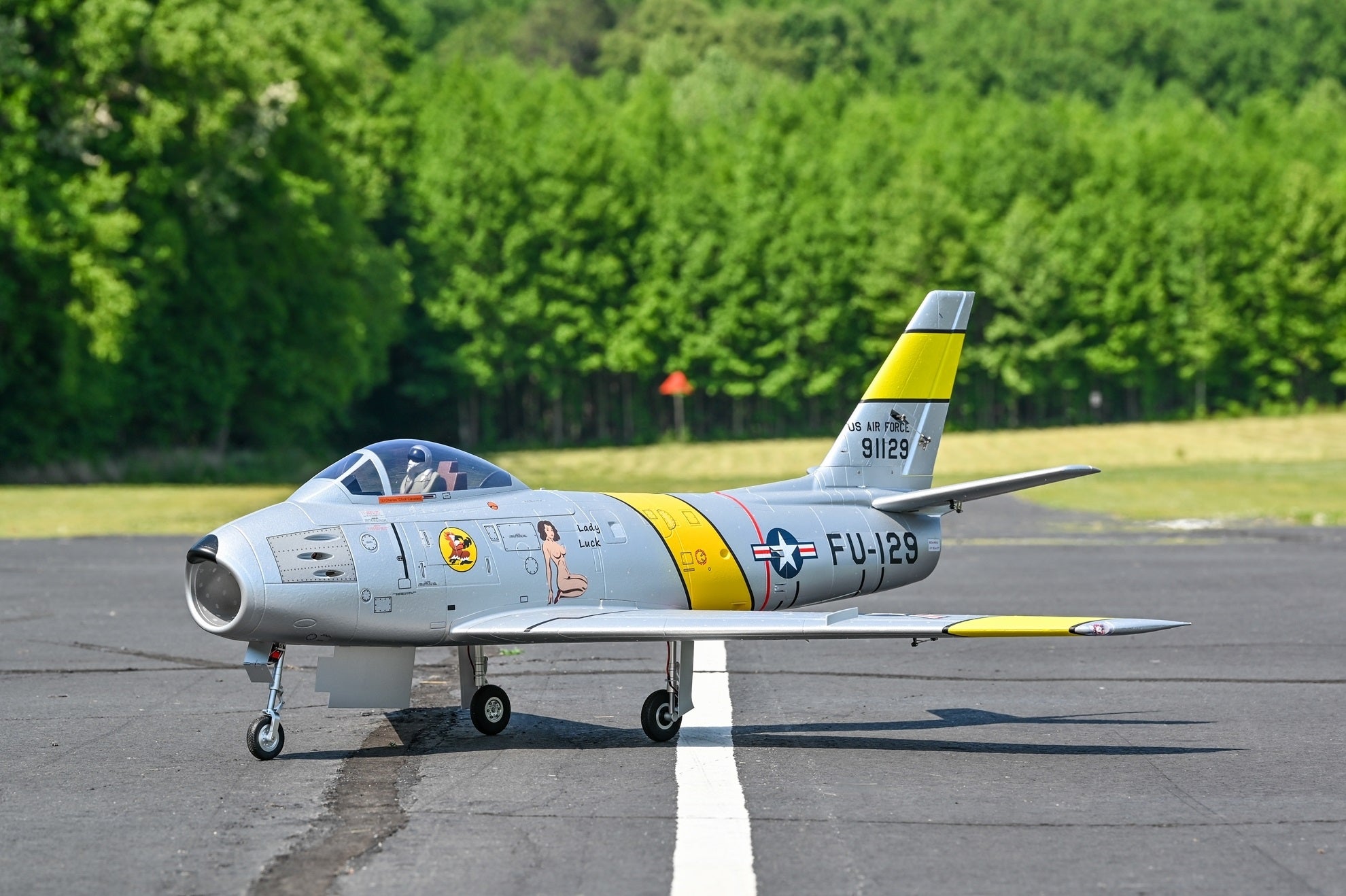

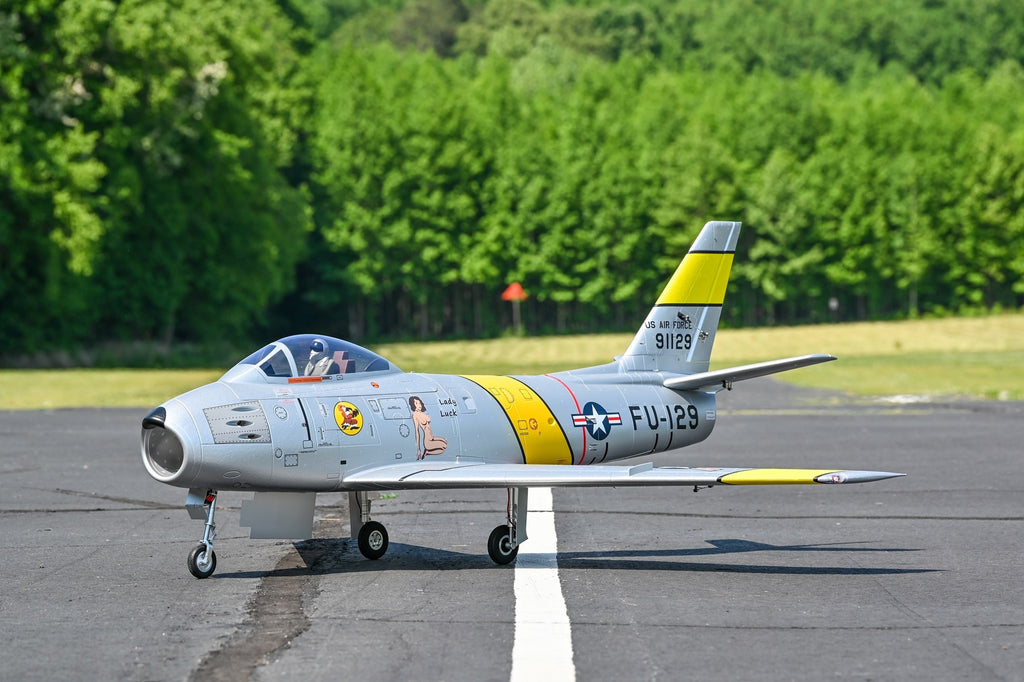

HSDJETS S-EDF120mm HF-86 Yellow ribbon Colors PNP

HSD Jets
BH65695
Out of stock
$1,599.00

HSDJETS S-EDF120mm HF-86 Yellow ribbon Colors PNP

What are included:

HSD Jets HF86, Motor, ESC. Servos

What are required:

8-channel radio system

6S,22.2V, 4500,45Cx2 LiPo with AS150 type plug

2S,7.4V,2000~3000mAh×2,LiPo with XT60 type plug

Lipo battery charger

2 hour assembly time

Specifications:

Material: EPO Foam

Wing Span: 1720 mm (67.7 in)

Flying Weight: 8kg (15.4 lb)

Wing Loading: N/a

Fuselage Length:1715mm (67.5in)

Center of Gravity: see manual

Motor: 5268 KV640

ESC: Hobbywing 160A

Servos:

25g×2 Metal gear with 560mm lead (Left & Right ailerons forward)
25g×2 Metal gear with 410mm lead (Left & Right flap forward)
25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward)
25g×1 Metal gear with 230mm lead (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward)

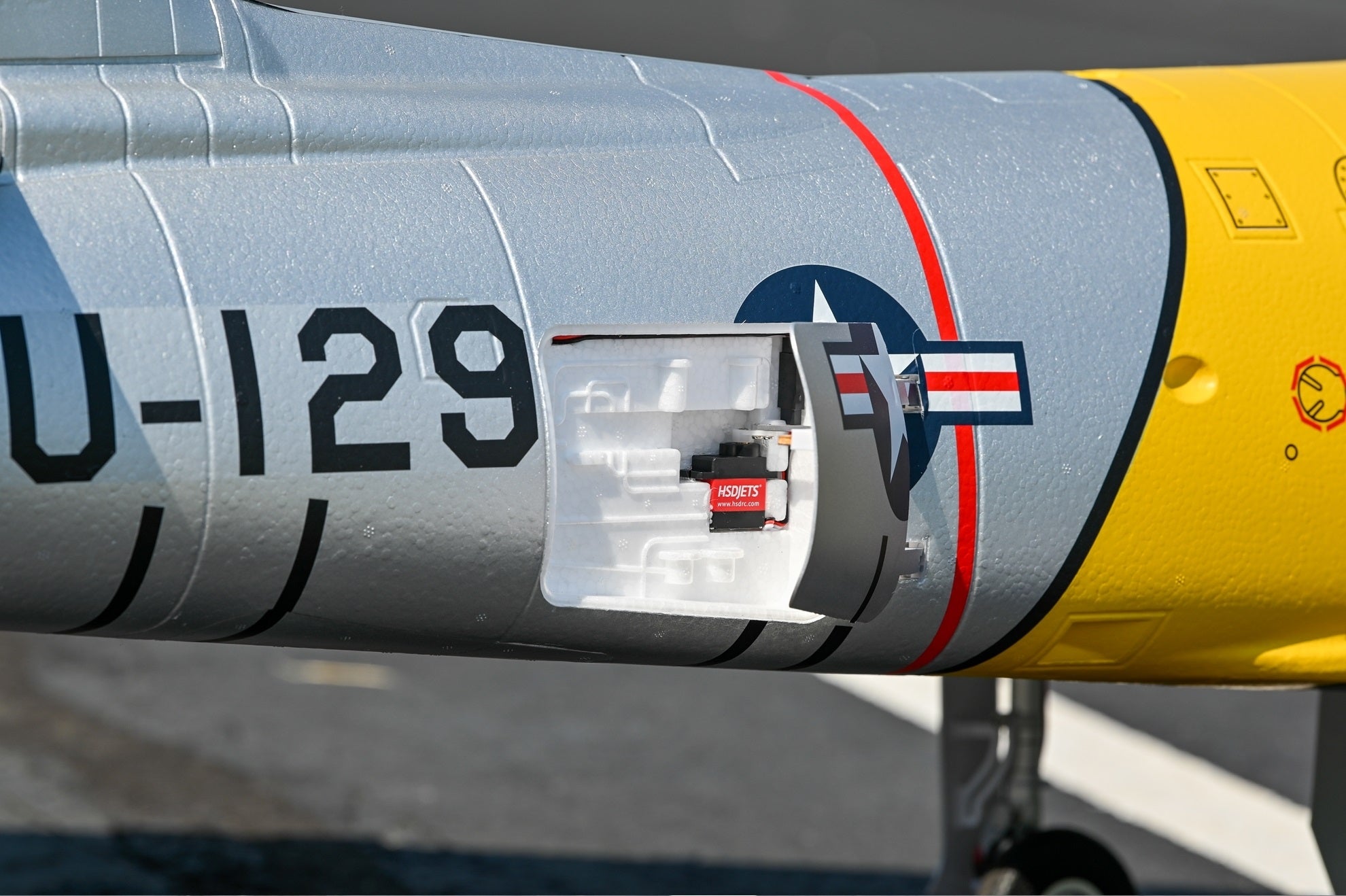

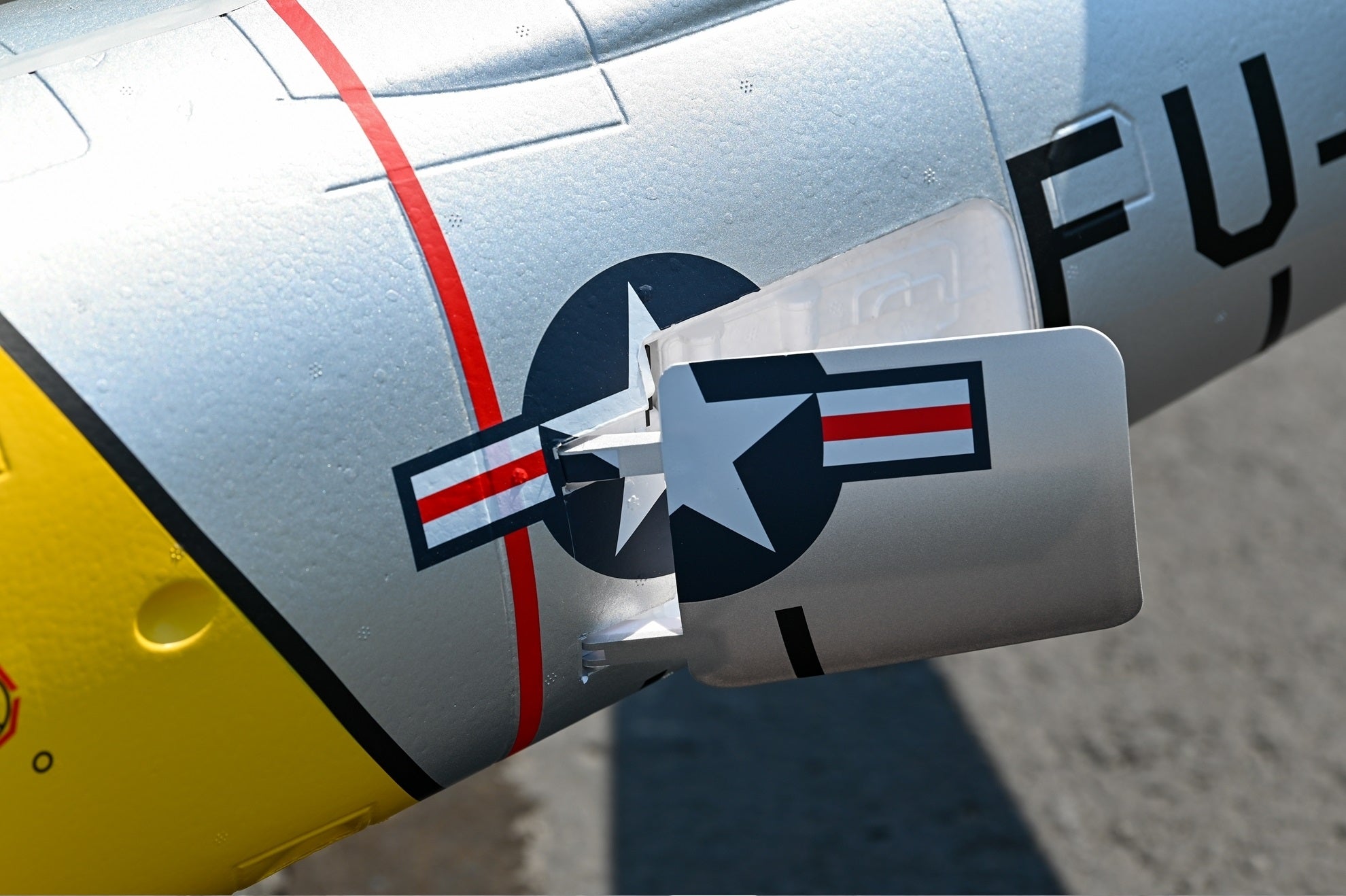

7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)

Elevator: Yes

Rudder: Yes

Ailerons: Yes

Flaps: Yes

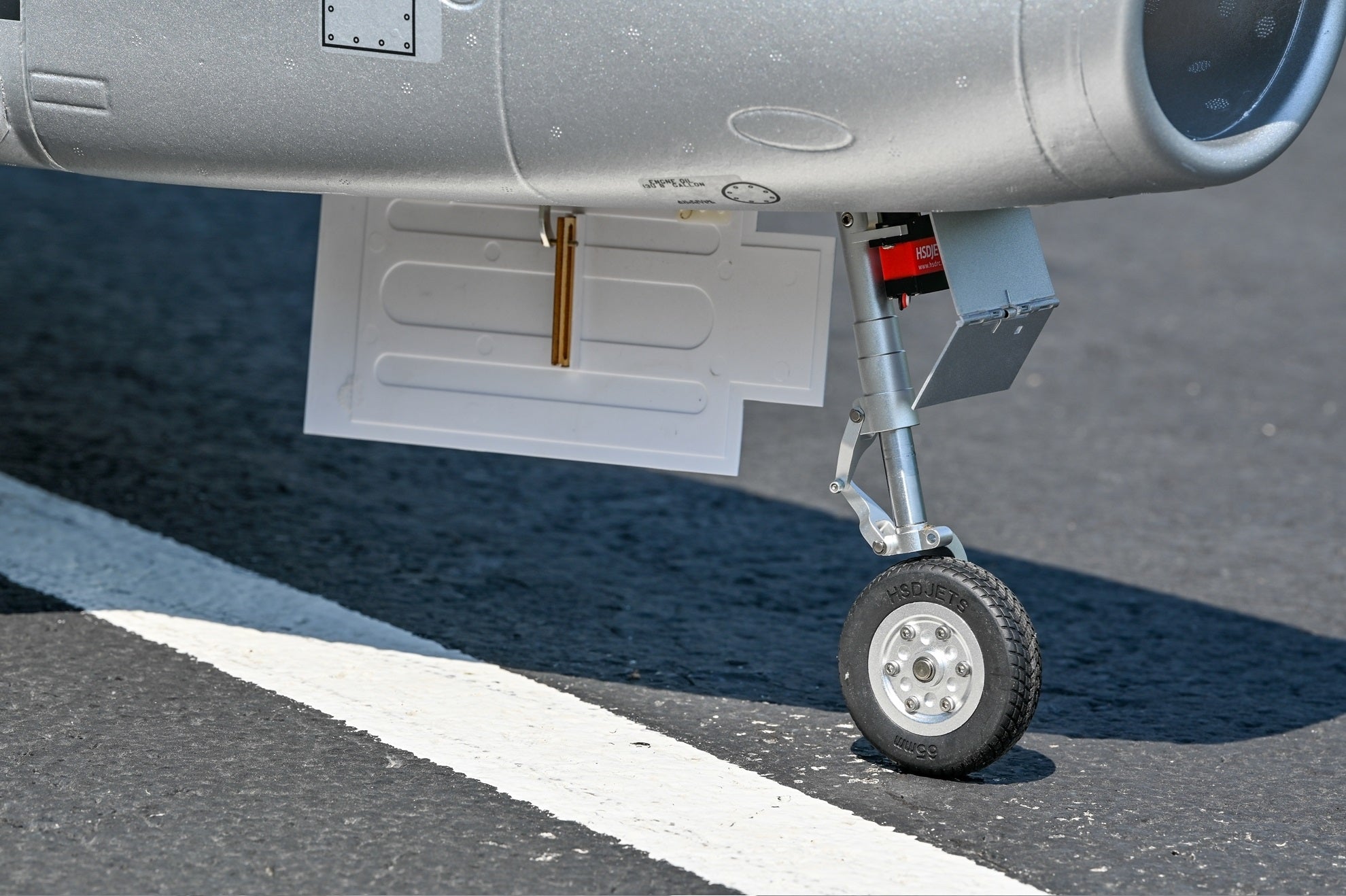

Landing Gear: All metal hydraulic simulation electric retractable landing gear×3
